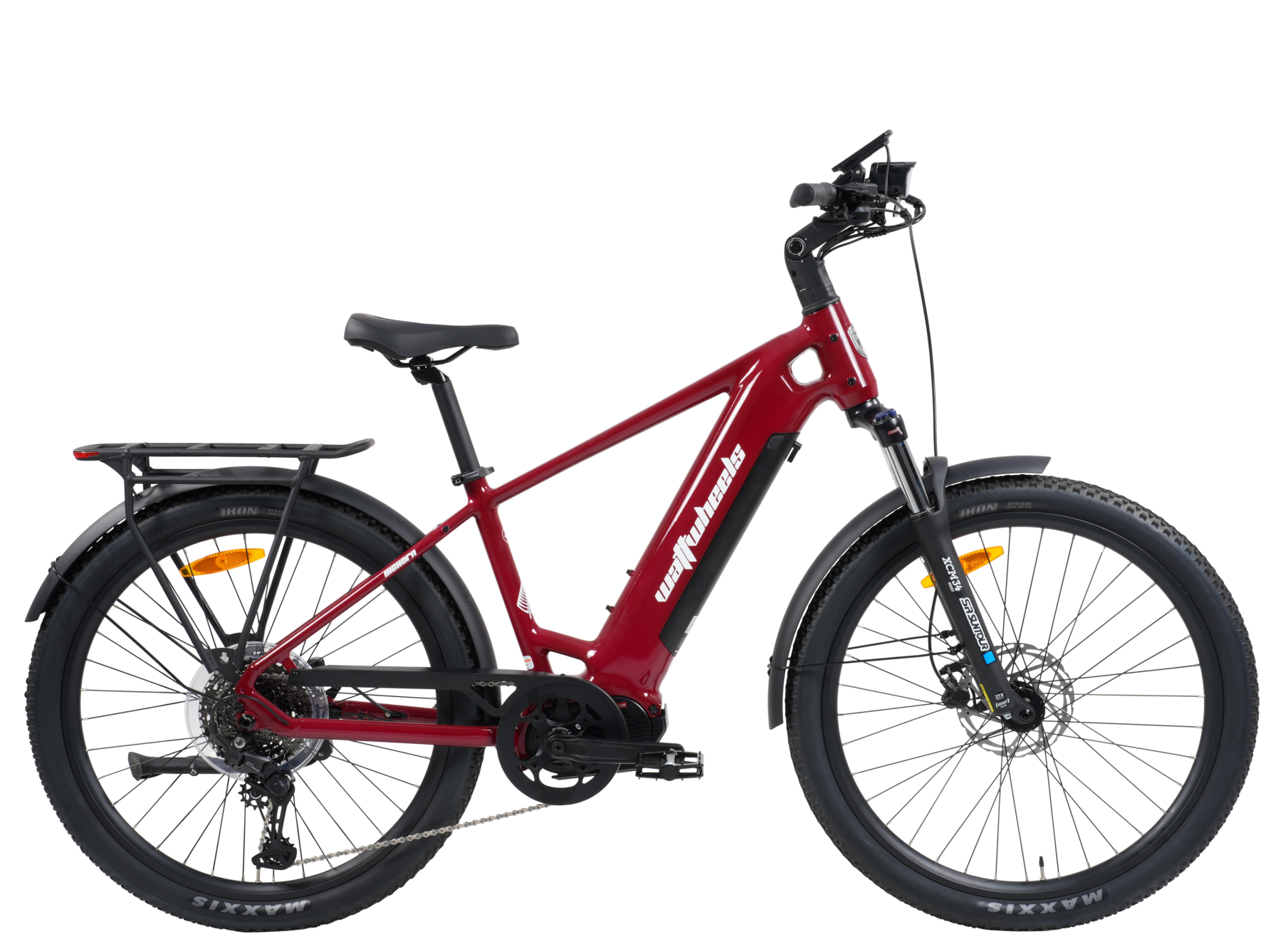

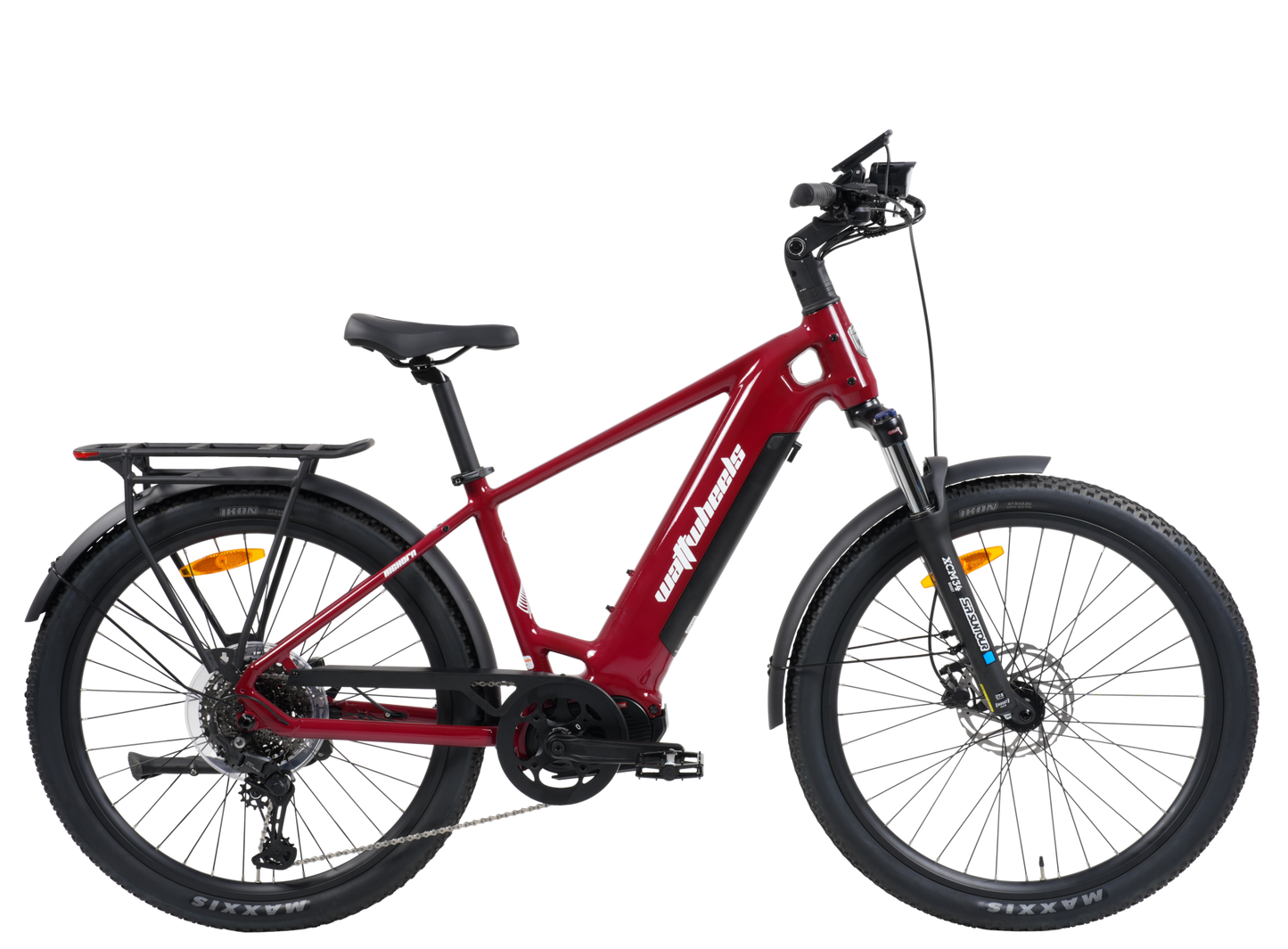

The same bike, built for riders who prefer a crossbar. The Bighorn S is the step-over version of our best-selling all-rounder — identical running gear, different frame. If you are taller, ride harder, or simply grew up on a traditional diamond frame, this is the Bighorn for you.
Why we feature it
The top tube frame is stiffer than the low step, which you notice when you are putting power down or carrying weight on the rack. It also sits you in a slightly more forward, purposeful riding position — less upright cruiser, more capable hybrid. Riders coming off a road or mountain bike tend to feel at home on it immediately.
Underneath, it is the same proven package. The Ananda M100 mid-drive delivers 300W and 120N·m of torque, which is what gets you up a steep pinch without dropping to walking pace. The 720Wh battery uses Samsung 21700 cells and is large enough that range stops being something you plan around — one of our customers took a Bighorn 700km through the Southland and Otago trails and was still seeing 80km of real-world range per charge.
The S gets a Shimano Deore 10-speed Linkglide drivetrain, a step up from the Cues groupset on the low step model. Linkglide is engineered specifically for the torque an e-bike puts through a chain, so it holds up where a standard drivetrain wears out. Tektro hydraulic discs on 180mm rotors handle the stopping, and a Suntour XCM34 fork with lockout takes the buzz out of gravel.
Everything you need is fitted from new: mudguards, rear rack, front and rear lights, and a colour display with a USB port.
Which Bighorn should you buy?
Mechanically the LS and the S are near-identical, so it comes down to the frame. Choose the LS if you want the easiest possible mount and dismount, ride in work clothes, or have any hip or mobility considerations. Choose the S if you are taller, want the stiffer frame, or just prefer the look of a crossbar. Both come in at the same price.
Smart connectivity
A 4G SIM module is built in, paired to the Wattwheels app: real-time GPS location, geo-fencing alerts if the bike moves without you, remote lighting and assistance control, remote diagnostics, and the ability to report it stolen — which shuts the bike down.
The app subscription is included for the first year and renews at $59.95 per year after that. It is entirely optional — the bike rides normally without it. Tracking functions require 4G coverage, and we recommend removing the battery if the bike will sit unused for more than a week or two.
WorkRide eligible
At 300W the Bighorn S V5 sits inside the WorkRide power limit, so it can be purchased through the scheme if your employer is signed up. Talk to us about how that works.
Specifications
Motor
Ananda M100 mid-drive, 300W, 120N·m torque, CANbus system
Battery
48V 15Ah 21700 Samsung Li-Ion (720Wh) with smart BMS
Charger
48V 3Ah smart charger
Display
Ananda D16 colour display with USB charge port
Frame
Top tube (step-over) — 17″ Medium (27.5″ wheel), 19″ Large (29″ wheel)
27.5kg including battery (frame 24kg, battery 3.5kg)
Maximum total weight
130kg combined bike, rider and cargo
Colours
Misty Blue, Moroccan Red
Warranty
5 years frame, 2 years motor / battery / display, 12 months mechanical components
Sizing
Not sure which size you need? Give us a call first and we will talk you through it.
Delivery and assembly
Please allow 7 working days for delivery and assembly of your bike. Bikes are shipped 90% assembled with basic final assembly required, or fully assembled and safety-checked by our own mechanics if collected from the store. Warranty work and servicing are handled in-house, or by nationwide repair partners in the event you are an out-of-town buyer.
Wattwheels occasionally substitute components of equal or better specification due to supply conditions, so minor variations between production runs are possible.
